Case Study

| all |

28 Savile Row, Mayfair

London, UK

AET Flexible Space Under Floor Air Conditioning and bespoke Teak covered raised access floor by Nesite was specified for the height restricted redevelopment of this prestigious Mayfair accommodation

Total Area

2,300 sq m

System
CAM-C system integrated with 2-pipe heat pumps Underfloor supply air, underfloor return air

2015 Refurbishment

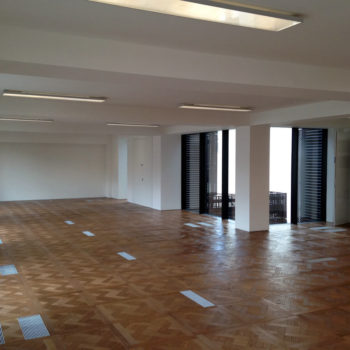

Underfloor air conditioning and a bespoke Teak covered raised access floor by Nesite was specified for the height restricted redevelopment of this prestigious Mayfair accommodation. The works comprised a full internal strip out to the core, demolition of structural partition walls, removal of redundant mechanical and electrical services and plant, removal and re-cladding of the facade, installation of new M&E services, plant and lift.

AET supplied CAM-C downflow units and slimline TUS-EC fantiles designed to be used in very shallow floor voids. The system utilises the latest Flexgateway for Modbus communications module and controls are fully integrated with the 2-pipe heat pumps located externally on platforms adjacent to each floor.

Architect – Denton Corker Marshall
Consultant – Waterman
Developer – Allied London
M & E Contractor – ARJ Construction


Case Study PDFs

Contact us at sales@flexiblespace.com to request PDF case studies
